Introduction

This document is a specification of an API that Jobman would encourage suppliers to develop so that third-party services (like Jobman) can integrate behalf of shared customers.

For the purposes of this document, we’ll call the example supplier “Smith & Co”.

URI

Smith & Co would develop an API that can be reached at a publicly available URL:

https://api.smithco.com/

Headers

Make sure you have the following content type headers set on every request:

Accept: application/json
Content-Type: application/json

Errors

Smith & co uses conventional HTTP response codes to indicate the success or failure of an API request. The table below contains a summary of the typical response codes:

Example raw response including headers

HTTP/1.1 401 Unauthorized
Date: Tue, 12 Mar 2024 01:22:40 GMT
Content-Type: application/json
Transfer-Encoding: chunked
Connection: close
Server: nginx
X-Powered-By: PHP/8.3.3
Cache-Control: no-cache, private
Access-Control-Allow-Origin: *
Access-Control-Expose-Headers: X-RateLimit-Limit, X-RateLimit-Remaining

{"message":"No valid API Key was given."}

Code	Description
200	Everything is ok.
400	Valid data was given but the request has failed.
401	No valid API Key was given.
404	The request resource could not be found.
422	The payload has missing required parameters or invalid data was given.
429	Too many attempts.
500	Request failed due to an internal error.
503	Offline for maintenance.

Authentication

Smith & Co supports the OAuth 2.0 protocol for authorizing API requests. Authorized requests to the API should use an Authorization header with an access token obtained through the OAuth flow.

Authorization: Bearer <ACCESS_TOKEN>

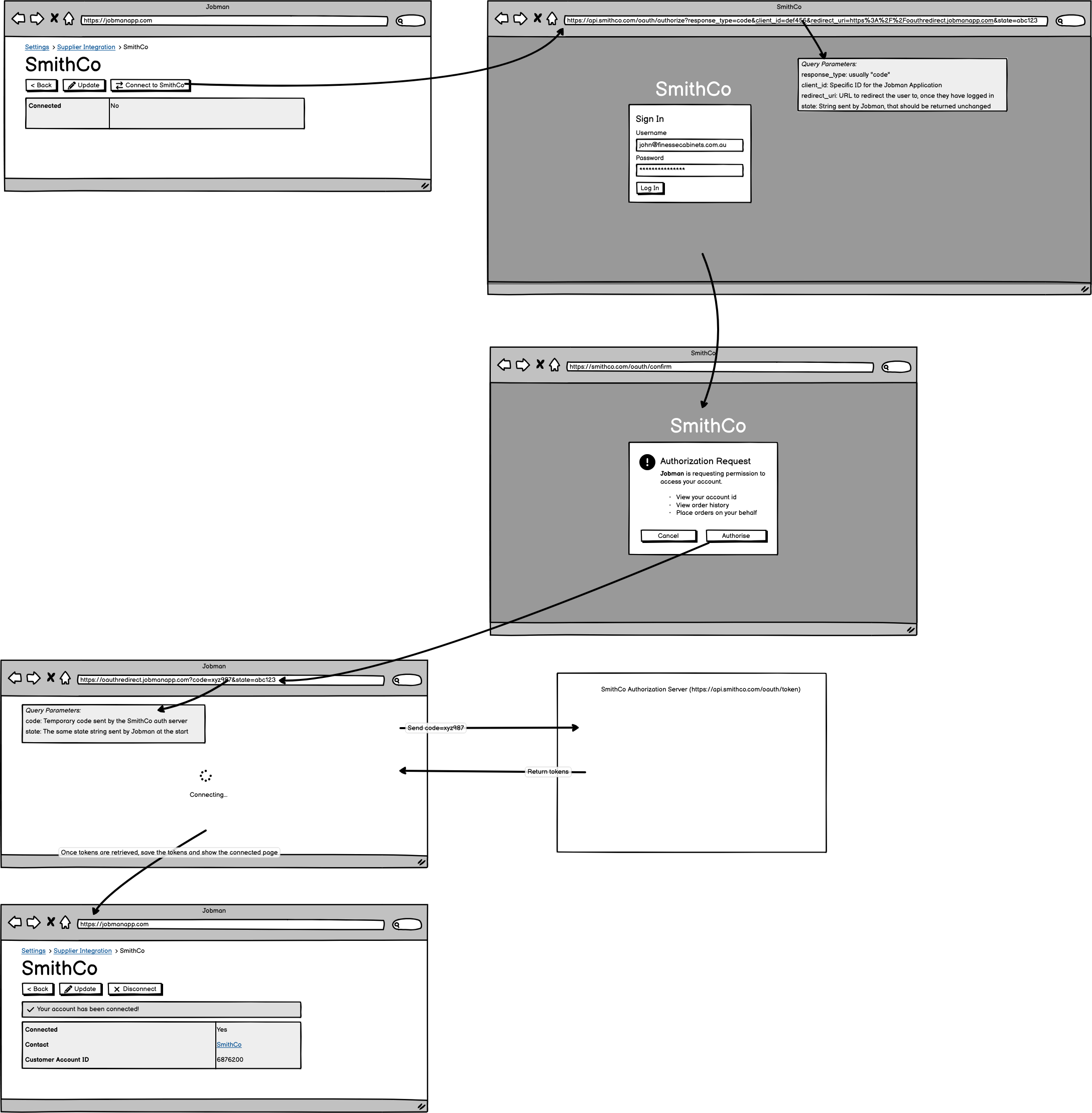

This diagram shows the process of authorizing a user from start to finish.

1. Redirect Users

To initiate the authorization process, redirect users to

https://api.smithco.com/oauth/authorize

Provide the following query parameters:

Key	Value
client_id	The client ID configured for your OAuth App
redirect_uri	The redirect URI configured for your OAuth App
scope	Space-separated list of scopes
state	An optional string to be passed back upon completion

2. Handle User Authorization

If the user authorizes your application, Smith & Co will redirect to the specified redirect_uri.

This redirection will contain a temporary code query parameter. These authorization codes may only be exchanged once, and will expire after 10 minutes.

This redirection will also contain the previously passed state value, as a query parameter. If this state value does not match, the request may be compromised and you should abort the authorization

3. Exchange the authorization code for an access token

Make a POST request to:

https://api.smithco.com/oauth/token

The request body should include the following values:

Key	Value
grant_type	`authorization_code`
code	The code you were provided in the previous step
redirect_uri	The redirect URI configured for your OAuth App
client_id	The client ID configured for your OAuth App
client_secret	The client secret configured for your OAuth App

Note: Please avoid exposing your client secret

The returned response body should contain a JSON payload with the following key/value pairs

Key	Value
access_token	The value represents the string to add to the Authorization header of future API requests
token_type	The value will be `Bearer`
expires_in	The value indicates the number of seconds until the access token will be invalid
refresh_token	The value indicates the string to use to generate another access token
scope	A space-separated string indicating the scopes that the access token can use

Use the generated access_token value to make API requests on behalf of the authorized user.

User

Get user details

Response

{
  "success": true,
  "message": "OK",
  "result": {
    "id": "CUSTOMER0001",
    "name": "Acme Inc",
    "email": "sales@acmeinc.com"
  }
}

This endpoint retrieves the account information of the authenticated customer.

HTTP Request

GET https://api.smithco.com/v1/user

Products

Get all Products

Response

{
  "success": true,
  "message": "OK",
  "result": [
    {
      "product_code": "PRODUCT0001",
      "description": "Door Hinge",
      "stock_type": "Hinge",
      "colour": "Black",
      "finish": "Gloss",
      "range": "Premium",
      "unit_price": "1.250",
      "length": "100",
      "width": "250",
      "thickness": "20",
      "rate_type": "ea",
      "product_url": "https://smithco.com/products/hinges/product-0001",
      "product_image_url": "https://smithco.com/images/product-0001-small.jpg",
      "qty_in_stock": "100",
      "qty_in_stock_locally": "30",
      "qty_in_stock_interstate": "70",
      "lead_time_days": "3",
      "restock_lead_time_days": "31"
    },
    {
      "product_code": "PRODUCT0002",
      "description": "Door Hinge",
      "stock_type": "Hinge",
      "colour": "Black",
      "finish": "Matt",
      "range": "Premium",
      "unit_price": "1.250",
      "length": "100",
      "width": "250",
      "thickness": "20",
      "rate_type": "ea",
      "product_url": "https://smithco.com/products/hinges/product-0002",
      "product_image_url": "https://smithco.com/images/product-0002-small.jpg",
      "qty_in_stock": "100",
      "qty_in_stock_locally": "30",
      "qty_in_stock_interstate": "70",
      "lead_time_days": "3",
      "restock_lead_time_days": "31"
    }
  ]
}

Return a list of all products (can potentially contain pricing and availability specific to that customer).

HTTP Request

GET https://api.smithco.com/v1/products?page=<PAGE>

Get a specific Product

Response

{
  "success": true,
  "message": "OK",
  "result": {
    "product_code": "PRODUCT0002",
    "description": "Door Hinge",
    "stock_type": "Hinge",
    "colour": "Black",
    "finish": "Matt",
    "range": "Premium",
    "unit_price": "1.250",
    "length": "100",
    "width": "250",
    "thickness": "20",
    "rate_type": "ea",
    "product_url": "https://smithco.com/products/hinges/product-0002",
    "product_image_url": "https://smithco.com/images/product-0002-small.jpg",
    "qty_in_stock": "100",
    "qty_in_stock_locally": "30",
    "qty_in_stock_interstate": "70",
    "lead_time_days": "3",
    "restock_lead_time_days": "31"
  }
}

Get information about a specific product.

HTTP Request

GET https://api.smithco.com/v1/products/<PRODUCT_ID>

Orders

Get all Orders

Response

{
  "success": true,
  "message": "OK",
  "result": [
    {
      "id": "ORDER0001",
      "status": "Shipped",
      "po_number": "PO0000289272",
      "order_date": "2024-01-22",
      "requested_by": "John Smith",
      "requested_email": "john@acmeinc.com",
      "total": "187500.00",
      "items": [
        {
          "product_code": "PRODUCT0001",
          "quantity": "1000",
          "unit_price": "1250",
          "subtotal": "125000.00"
        },
        {
          "product_code": "PRODUCT0002",
          "quantity": "50",
          "unit_price": "1250",
          "subtotal": "62500.00"
        }
      ]
    },
    {
      "id": "ORDER0002",
      "status": "Placed",
      "po_number": "PO0000282222",
      "order_date": "2024-01-22",
      "requested_by": "John Smith",
      "requested_email": "john@acmeinc.com",
      "total": "13125.00",
      "items": [
        {
          "product_code": "PRODUCT0001",
          "quantity": "1000",
          "unit_price": "12.50",
          "subtotal": "12500.00"
        },
        {
          "product_code": "PRODUCT0002",
          "quantity": "50",
          "unit_price": "12.50",
          "subtotal": "625.00"
        }
      ]
    }
  ]
}

Return a list of all orders that a customer has placed.

HTTP Request

GET https://api.smithco.com/v1/orders?page=<PAGE>

Get a specific Order

Response

{
  "success": true,
  "message": "OK",
  "result": {
    "id": "ORDER0002",
    "status": "Placed",
    "po_number": "PO0000282222",
    "order_date": "2024-01-22",
    "requested_by": "John Smith",
    "requested_email": "john@acmeinc.com",
    "total": "13150.00",
    "items": [
      {
        "product_code": "PRODUCT0001",
        "quantity": "1000",
        "unit_price": "12.50",
        "subtotal": "12500.00"
      },
      {
        "product_code": "PRODUCT0002",
        "quantity": "50",
        "unit_price": "12.50",
        "subtotal": "625.00"
      }
    ]
  }
}

Get information about a specific order.

HTTP Request

GET https://api.smithco.com/v1/orders/<ORDER_ID>

Place a new order

Request (minimum)

{
  "po_number": "PO0000282222",
  "items": [
    {
      "product_code": "PRODUCT0001",
      "quantity": "1000",
    },
    {
      "product_code": "PRODUCT0002",
      "quantity": "50",
    },
  ]
}

Response (minimum)

{
  "success": true,
  "message": "OK",
  "result": {
    "id": "ORDER0003",
    "status": "Placed",
    "po_number": "PO0000282222",
    "total": "13750.00",
    "items": [
      {
        "product_code": "PRODUCT0001",
        "quantity": "1000",
        "unit_price": "12.50",
        "subtotal": "12500.00"
      },
      {
        "product_code": "PRODUCT0002",
        "quantity": "50",
        "unit_price": "12.50",
        "subtotal": "625.00"
      }
    ]
  }
}

This endpoint allows a customer to place a new order.

HTTP Request

POST https://api.smithco.com/v1/orders

This is a list of fields that are available to be sent for the purchase order. Items without an asterisk are optional.

Parameter	Required	Eg.	Description
po_number	*	PO0000282222	The purchase order number
items	*	(Array, see Items below)	Array of product details required
order_date		2024-01-20	The date the order was created inside Jobman (which may be different to the day it was placed with the supplier)
required_by_date		2024-01-30	The date this order is required by
requested_by_name		John Smith	The name of the person placing the order
requested_by_email		john@acmeinc.com	The email of the person placing the order
delivery_street_no		15	Street number of the delivery address
delivery_street_name		Railway St	Street name of the delivery address
delivery_city		Gnomesville	Suburb (City) of the delivery address
delivery_region		Western Australia	Region (State) of the delivery address
delivery_postcode		6000	Postcode (Zip) of the delivery address
delivery_country		Australia	Country of the delivery address
delivery_instructions		Deliver to side roller door	Indicate specific delivery instructions for this order

Items

This is a list of fields that are available for each item. Items without an asterisk are optional.

Parameter	Required	Eg.	Description
product_code	*	FM-947818	The product code identifier for the product
quantity	*	2	The quantity that is requested
job_number		1234.2	A string that identifies which job the product is required for
index		1	A numerical index to keep the items in the correct order
required_by_date		2024-01-29	Date that the line item is required by

Request (maximum)

{
    "po_number": "PO0000282222",
    "order_date": "2024-01-20",
    "required_by_date": "2014-01-30",
    "requested_by_name": "John Smith",
    "requested_by_email": "john@acmeinc.com",
    "delivery_street_no": "15",
    "delivery_street_name": "Railway St",
    "delivery_city": "Gnomesville",
    "delivery_region": "Western Australia",
    "delivery_postcode": "6000",
    "delivery_country": "Australia",
    "delivery_instructions": "Please deliver to side roller door.",
    "items": [
        {
            "product_code": "PRODUCT0001",
            "quantity": "1000",
            "job_number": "1234.2",
            "index": 1,
            "required_by_date": "2024-01-30"
        },
        {
            "product_code": "PRODUCT0002",
            "quantity": "50",
            "job_number": "1234.1A",
            "index": 2,
            "required_by_date": "2024-01-31"
        }
    ]
}

Response (maximum)

{
  "success": true,
  "message": "OK",
  "result": {
    "id": "ORDER0003",
    "status": "Placed",
    "po_number": "PO0000282222",
    "required_by_date": "2014-01-30",
    "requested_by_name": "John Smith",
    "requested_by_email": "john@acmeinc.com",
    "delivery_street_no": "15",
    "delivery_street_name": "Railway St",
    "delivery_city": "Gnomesville",
    "delivery_region": "Western Australia",
    "delivery_postcode": "6000",
    "delivery_country": "Australia",
    "delivery_instructions": "Please deliver to side roller door.",
    "total": "13750.00",
    "sales_tax": "1375.00",
    "total_inc_tax": "15125.00",
    "items": [
      {
        "product_code": "PRODUCT0001",
        "quantity": "1000",
        "job_number": "1234.2",
        "index": 1,
        "required_by_date": "2024-01-30",
        "estimated_arrival_date": "2024-01-26",
        "unit_price": "12.50",
        "subtotal": "12500.00",
        "sales_tax": "1250.00",
        "subtotal_inc_tax": "13750.00"
      },
      {
        "product_code": "PRODUCT0002",
        "quantity": "100",
        "job_number": "1234.1A",
        "index": 2,
        "required_by_date": "2024-01-31",
        "estimated_arrival_date": "2024-01-26",
        "unit_price": "12.50",
        "subtotal": "1250.00",
        "sales_tax": "125.00",
        "subtotal_inc_tax": "1375.00"
      }
    ]
  }
}
